20 Watt 300B-XLS Single-Ended Amplifier

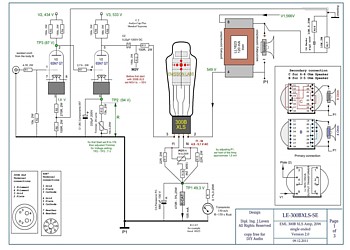

This is a circuit diagram of a SE amplifier, designed for the EML-300B XLS tube by EMISSION LABS. The driver stage consists of a DC coupled 6SN7 tube. The EML 300B-XLS is a larger, stronger version of the 300B triode. The larger design is compared with a 300B allows continuous operation with a higher anode dissipation (AVL), in the LE - 300B-XLS-SE circuit, this tube is operated with appr. 52 watts plate dissipation. The use of a normal 300B is not possible in this circuit. The operating point of the 300B-XLS is provided by a classical auto bias circuit, and negative bias allows a precise and permanent working. Read the full description here



20 Watt 300B-XLS Single Ended Verstaerker

Dies ist ein Schaltbild zu einem SE Verstaerker, ausgelegt fuer eine EMISSION LABS EML 300B-XLS Roehre. Die Treiber Stufe besteht aus einer Gleichstrom gekoppelt 6SN7 Roehre. Die EML 300B-XLS ist
eine groeßere und staerkere Version der 300B Triode. Die groeßere Bauart gegenueber einer 300B Roehre ermoeglicht den dauerhaften Betrieb mit einer hoeheren Anodenverlustleistung (AVL), in der LE – 300B - XLS - SE Schaltung wird diese Roehre mit ca. 52 Watt AVL betrieben . Der Einsatz einer normalen 300B ist in dieser Schaltung nicht moeglich. Der Arbeitspunkt der 300B-XLS ist einfach ein zu stellen, Auto Bias und negative Gittervorspannung ermoeglicht einen praezisen und dauerhaften Arbeitspunkt. Lesen Sie hier die Gesamte Beschreibung


Are you interested? You can contact Mr. Leven, and other users here:

>


Power Supply for mono Block version

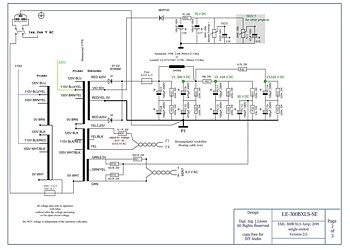

Schaltbilder mit freundlicher Genehmigung von Dipl. Ing. J. Leven.


Power Supply for 300B-XLS Stereo Amplifier
300B-XLS Schaltbilder mit freundlicher Genehmigung von Dipl. Ing. J. Leven.
